The equipment is driven by a motor, making full use of the shearing, splitting and pulling effects of the tooth plate, allowing the material to be continuously selectively crushed by the primary and secondary tooth rollers to reach the required particle size. It can greatly simplify the process and reduce investment. It is suitable for brittle materials with a compressive strength of less than or equal to 80MPa.
High-quality products
are our core competitiveness

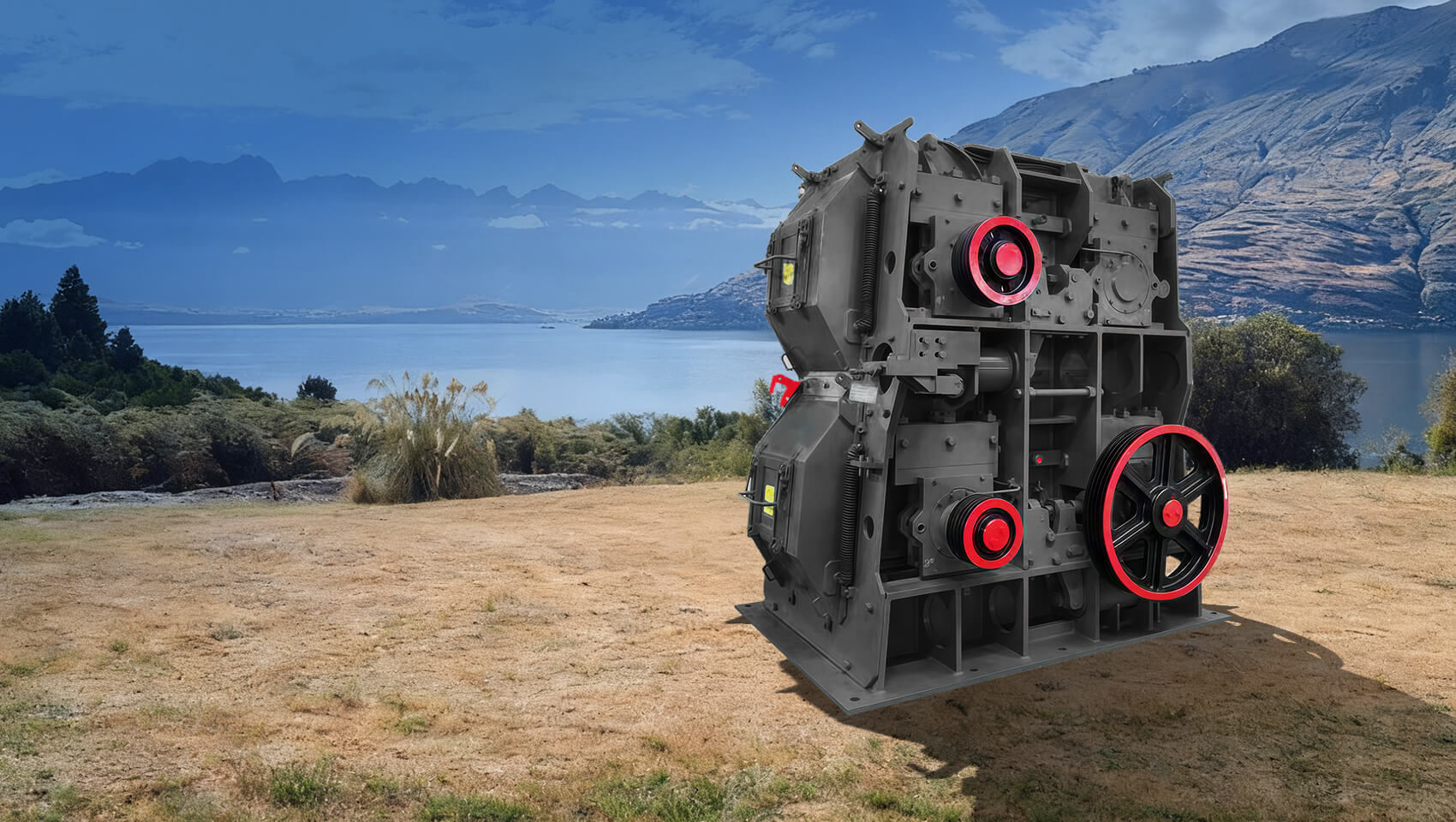

This equipment is suitable for crushing large-size materials, It has large processing capacity and uniform and adjustable product particle size, It can achieve multiple crushing with one machine;
It has no requirement for moisture, no over-crushing, and greatly reduces energy consumption;
It has automatic avoidance function and automatic lubrication device to ensure efficient and continuous operation of the equipment.
| Model | Processing Capacity(t/h) | Feeding size(mm) | Discharge size(mm) | Power(kw) | Dimensions A(L×W×H)(mm) | Dimensions B(L×W×H)(mm) |
| PMG-50 | 50 | ≤300 | ≤10 | 2×22 | 5180×2980×2000 | 5180×1620×2000 |
| PMG-70 | 70 | 37+30 | 5270×3320×2135 | 5270×1880×2135 | ||
| PMG-90 | 90 | 2×45 | 5375×3700×2600 | 6175×1975×2600 | ||
| PMG-120 | 120 | 55+45 | 5375×3880×2600 | 6175×2075×2600 | ||
| PMG-140 | 140 | 55+45 | 5375×3980×2600 | 6175×2110×2600 | ||
| PMG-170 | 170 | 75+55 | 5375×4320×2600 | 6175×2380×2600 | ||
| PMG-200 | 200 | 90+75 | 5530×4720×2600 | 6330×2700×2600 | ||
| PMG-250 | 250 | 110+90 | 5530×4920×2600 | 6330×2800×2600 | ||
| PMG-300 | 300 | 132+110 | 5530×5100×2600 | 6330×2900×2600 | ||
| PMG-350 | 350 | 132+110 | 5530×5320×2600 | 6330×3100×2600 | ||
| PMG-400 | 400 | 2×160 | 6340×6150×2600 | 6740×3430×2600 | ||
| PMG-450 | 450 | 2×185 | 6340×6450×2600 | 6740×3730×2600 | ||
| PMG-500 | 500 | 2×200 | 6340×6750×2600 | 6740×4030×2600 | ||
| PMG-600 | 600 | 280+250 | 7150×8440×2800 | 一 | ||
| PMG-700 | 700 | 315+280 | 7150×8840×2800 | 一 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Processing Capacity(t/h) | Feeding size(mm) | Discharge size(mm) |
| PMG-50 | 50 | ≤300 | ≤10 |
| PMG-70 | 70 | ||
| PMG-90 | 90 | ||
| PMG-120 | 120 | ||
| PMG-140 | 140 | ||
| PMG-170 | 170 | ||
| PMG-200 | 200 | ||
| PMG-250 | 250 | ||
| PMG-300 | 300 | ||
| PMG-350 | 350 | ||
| PMG-400 | 400 | ||
| PMG-450 | 450 | ||
| PMG-500 | 500 | ||
| PMG-600 | 600 | ||
| PMG-700 | 700 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
