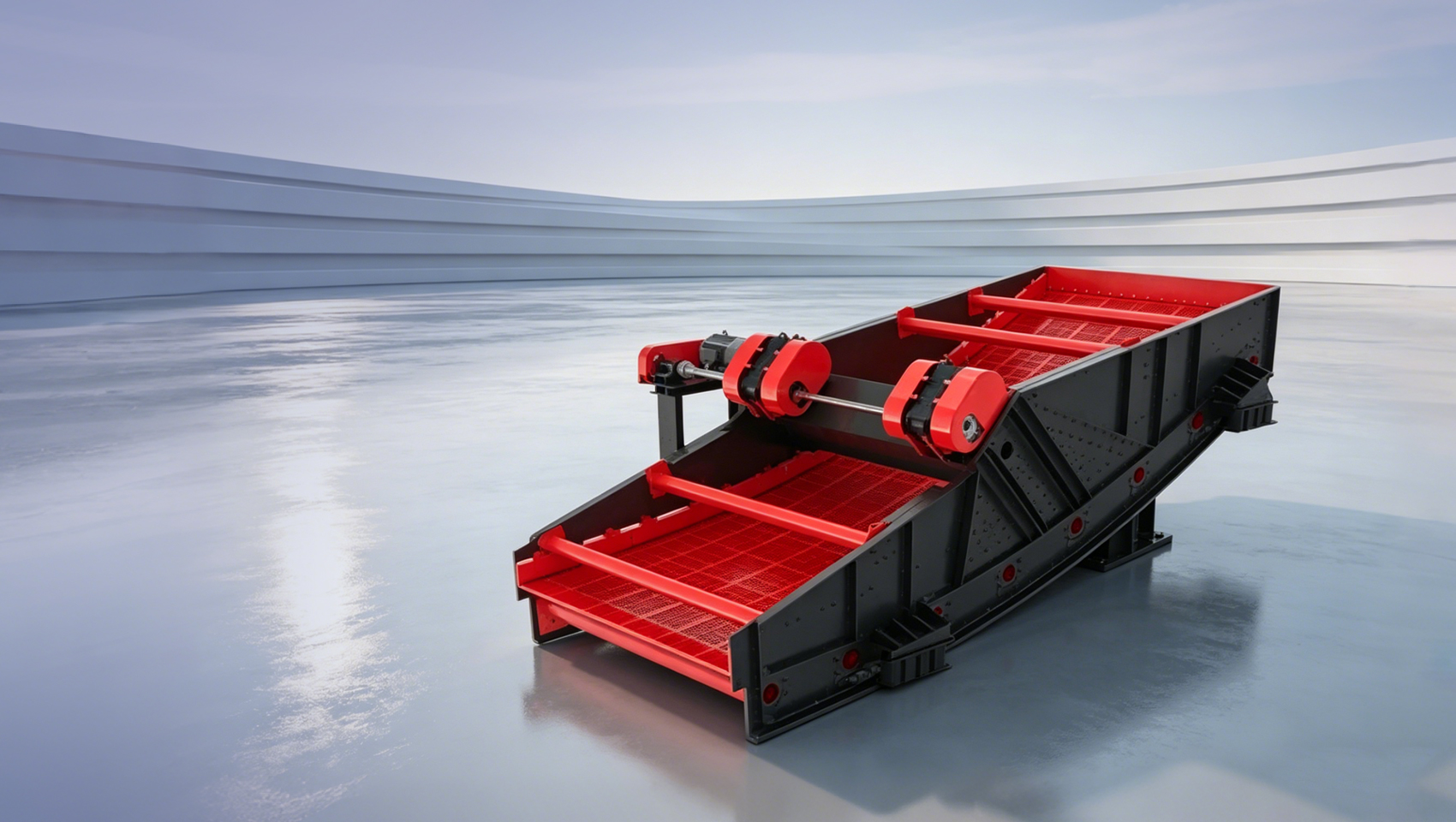

Banana screen is mainly used for sorting and grading large and medium-sized materials with high fine material content. It also has the functions of dehydrating, desludging and removing media from materials. It can be widely used in fine quartz stone washing, sand and gravel aggregate spray washing and other sand washing and stone washing industries.
High-quality products
are our core competitiveness
| Model | Layer | Processing capacity(t/h) | Double Amplitude(mm) | Sieve obliquity(°) | Mesh size(mm) | Frequency (r/min) | Input size(mm) | Power(kw) | ||||
| Dewatering (t/h) | sand and gravel | Dewatering (mm) | sand and gravel | Dewatering (mm) | sand and gravel | |||||||
| 1861 | HBS1861 | 1 | 170 | 700 | 6-8 | 5-20° | 0.5-5 | 5-150 | 960 | ≤80 | ≤300 | 22 |
| HBD1861 | 2 | 30 | ||||||||||
| HBT1861 | 3 | 30 | ||||||||||
| 2461 | HBS2461 | 1 | 225 | 900 | 6-8 | 5-20° | 0.5-5 | 5-150 | 960 | ≤80 | ≤300 | 22 |
| HBD2461 | 2 | 30 | ||||||||||
| HBT2461 | 3 | 45 | ||||||||||
| 3061 | HBS3061 | 1 | 280 | 1100 | 6-8 | 5-20° | 0.5-5 | 5-150 | 900 | ≤80 | ≤300 | 30 |
| HBD3061 | 2 | 45 | ||||||||||
| HBT3061 | 3 | 55 | ||||||||||
| 3075 | HBS3075 | 1 | 280 | 1150 | 6-10 | 5-25° | 0.5-5 | 5-150 | 900 | ≤80 | ≤300 | 30 |
| HBD3075 | 2 | 55 | ||||||||||
| HBT3075 | 3 | 75 | ||||||||||
| 3685 | HBS3685 | 1 | 340 | 1500 | 8-10 | 5-25° | 0.5-5 | 5-150 | 850 | ≤80 | ≤300 | 55 |
| HBD3685 | 2 | 75 | ||||||||||
| HBT3685 | 3 | 90 | ||||||||||
| 4375 | HBS4375 | 1 | 400 | 1800 | 8-10 | 5-25° | 5-150 | 5-150 | 850 | ≤80 | ≤300 | 55 |
| HBD4375 | 2 | 90 | ||||||||||
| HBT4375 | 3 | 90 | ||||||||||
| 4385 | HBS4385 | 1 | 400 | 1900 | 8-10 | 5-25° | 5-150 | 5-150 | 830 | ≤80 | ≤300 | 75 |
| HBD4385 | 2 | 90 | ||||||||||
| HBT4385 | 3 | 110 | ||||||||||
Note: Processing capacity may vary with different materials and feeding sizes.
| Model | Layer | Processing capacity(t/h) | ||
| Dewatering (t/h) | sand and gravel | |||
| 1861 | HBS1861 | 1 | 170 | 700 |
| HBD1861 | 2 | |||
| HBT1861 | 3 | |||
| 2461 | HBS2461 | 1 | 225 | 900 |
| HBD2461 | 2 | |||
| HBT2461 | 3 | |||
| 3061 | HBS3061 | 1 | 280 | 1100 |
| HBD3061 | 2 | |||
| HBT3061 | 3 | |||
| 3075 | HBS3075 | 1 | 280 | 1150 |
| HBD3075 | 2 | |||
| HBT3075 | 3 | |||
| 3685 | HBS3685 | 1 | 340 | 1500 |
| HBD3685 | 2 | |||
| HBT3685 | 3 | |||
| 4375 | HBS4375 | 1 | 400 | 1800 |
| HBD4375 | 2 | |||
| HBT4375 | 3 | |||
| 4385 | HBS4385 | 1 | 400 | 1900 |
| HBD4385 | 2 | |||
| HBT4385 | 3 | |||
Note: Processing capacity may vary with different materials and feeding sizes.
