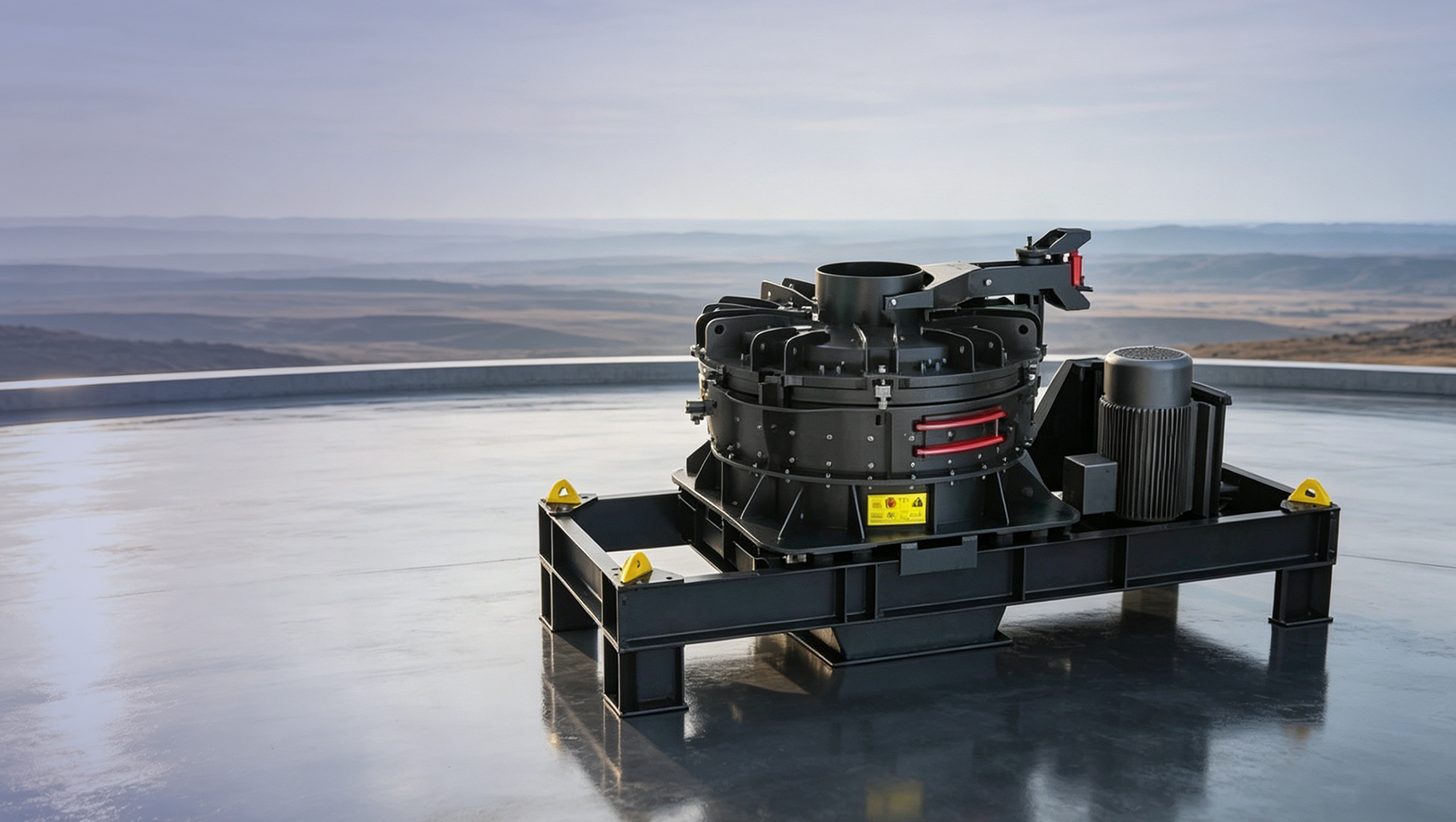

FGM Series Ultrafine Grinding Sand Making Machine

Throughput 35-119t/h
Feed size ≤55mm

PRODUCTION INTRODUCTION

The ultrafine grinding sand making machine integrates international advanced technical concepts, and its unique cutting and grinding structure can realize the three-effect combination of " impact, shear, and grinding", filling the technical gap between coarse sand and powder, and opening a new era of complete grading.

Suitable for crushing all medium and low abrasive minerals, it is an ideal equipment for the production of high-quality mechanism sand for the concrete, asphalt and dry-mixed mortar industries.

Chat Online

High-quality products

are our core competitiveness

THE MAIN BENEFITS AND ADVANTAGES

Unique crushing principle

Based on the unique design of the hammer head and the surrounding guard plate, a constant crushing gap is formed to achieve extremely high energy impact and precise crushing.

Excellent product quality

The shape of the finished particles is rounded, which effectively improves fluidity and compactness, and the gradation curve is stable, which does not change with the normal wear and tear of wearing parts.

High output rate of fine sand

The optimized structure and speed control ensure that the proportion of fine sand in the range of 0–3mm is significantly increased.

Intelligent management of the whole process

Through the independent research and development of the DCS centralized control platform and PLC system, real-time monitoring of the operating status of the equipment and intelligent management of the whole process are realized.

Technical Parameter

TO VIEW MORE

Model	Rotor Diameter ×Height(mm)	Number of hammer rods (pieces)	Maximum circular speed(m/s)	Throughput (t/h)	Feeding size(mm)	Power (kw)	Dimensions(L×W×H) (mm)
FGM1113	1150×135	8	70	35-43	≤55	132	3750×1620×2360
FGM1513	1500×135	12	70	70-82	≤55	200	4620×1990×2460
FGM2215	2200×150	18	70	100-119	≤55	315	5730×2740×2630

Note: Processing capacity may vary with different materials and feeding sizes.

Model	Number of hammer rods (pieces)	Throughput (t/h)	Feeding size(mm)
FGM1113	8	35-43	≤55
FGM1513	12	70-82	≤55
FGM2215	18	100-119	≤55

Note: Processing capacity may vary with different materials and feeding sizes.
