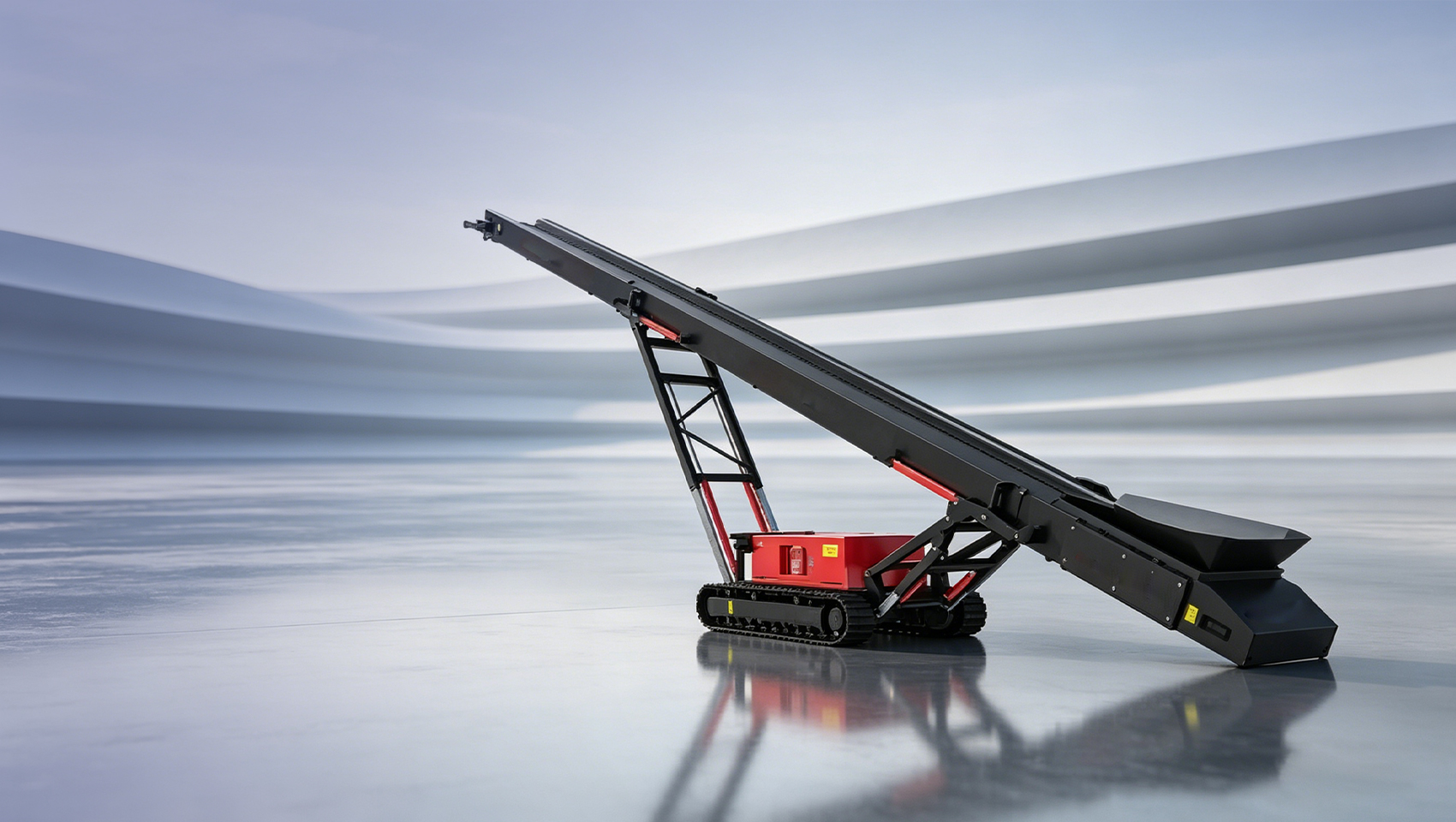

Crawler mobile conveyor is an efficient and flexible continuous conveying equipment that integrates the functions of receiving, conveying, walking, and steering. It is essentially a movable belt conveyor mounted on a crawler chassis.
High-quality products
are our core competitiveness
Mobile conveyors are designed to work together with crushing and screening equipment.
Increase stacking capacity and reduce on-site material handling operations.
Reduce the use of wheel loaders, reduce costs and improve site safety.
In order to facilitate transportation and reduce transportation costs, the CT conveyor can be loaded into a 40-foot-high cabinet container.
| Model | CT0816 | CT0820 | CT0824 | CT1016 | CT1020 | CT1024 | |
| Belt Conveyor | Width (mm) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
| Height(m) | 15.8 | 19.3 | 23.3 | 15.8 | 19.3 | 23.3 | |
| Stacking Height(m) | 6.5 | 8 | 9.5 | 6.5 | 8 | 9.5 | |
| Stacking Volume(m) | 410 | 760 | 1280 | 410 | 760 | 1280 | |
| Conveying Capacity(t/h) | 300 | 300 | 300 | 450 | 450 | 450 | |
| Power Type | Fully Hydraulic | Engine 37.5kw | |||||
| Dual Power | Engine set 45kw | ||||||
| Crawler Chassis | Soleplate Width(mm) | 400 | |||||
| Wheel Track(mm) | 3000 | ||||||
| Height(mm) | 625 | ||||||
| Main Machine | Control Method | wireless remote control | |||||
| Remote Control Distance(m) | ≈50 | ||||||
| Transport overall dimensions (L×W×H)(m) | 10.4×2.29×2.5 | 10.4×2.29×2.5 | 12.2×2.29×2.5 | 10.4×2.29×2.5 | 10.4×2.29×2.5 | 12.2×2.29×2.5 | |
Note: Processing capacity may vary with different materials and feeding sizes.
| Model | Belt Conveyor | ||
| Stacking Height(m) | Stacking Volume(m) | Conveying Capacity(t/h) | |
| CT0816 | 6.5 | 410 | 300 |
| CT0820 | 8 | 760 | 300 |
| CT0824 | 9.5 | 1280 | 300 |
| CT1016 | 6.5 | 410 | 450 |
| CT1020 | 8 | 760 | 450 |
| CT1024 | 9.5 | 1280 | 450 |
Note: Processing capacity may vary with different materials and feeding sizes.
