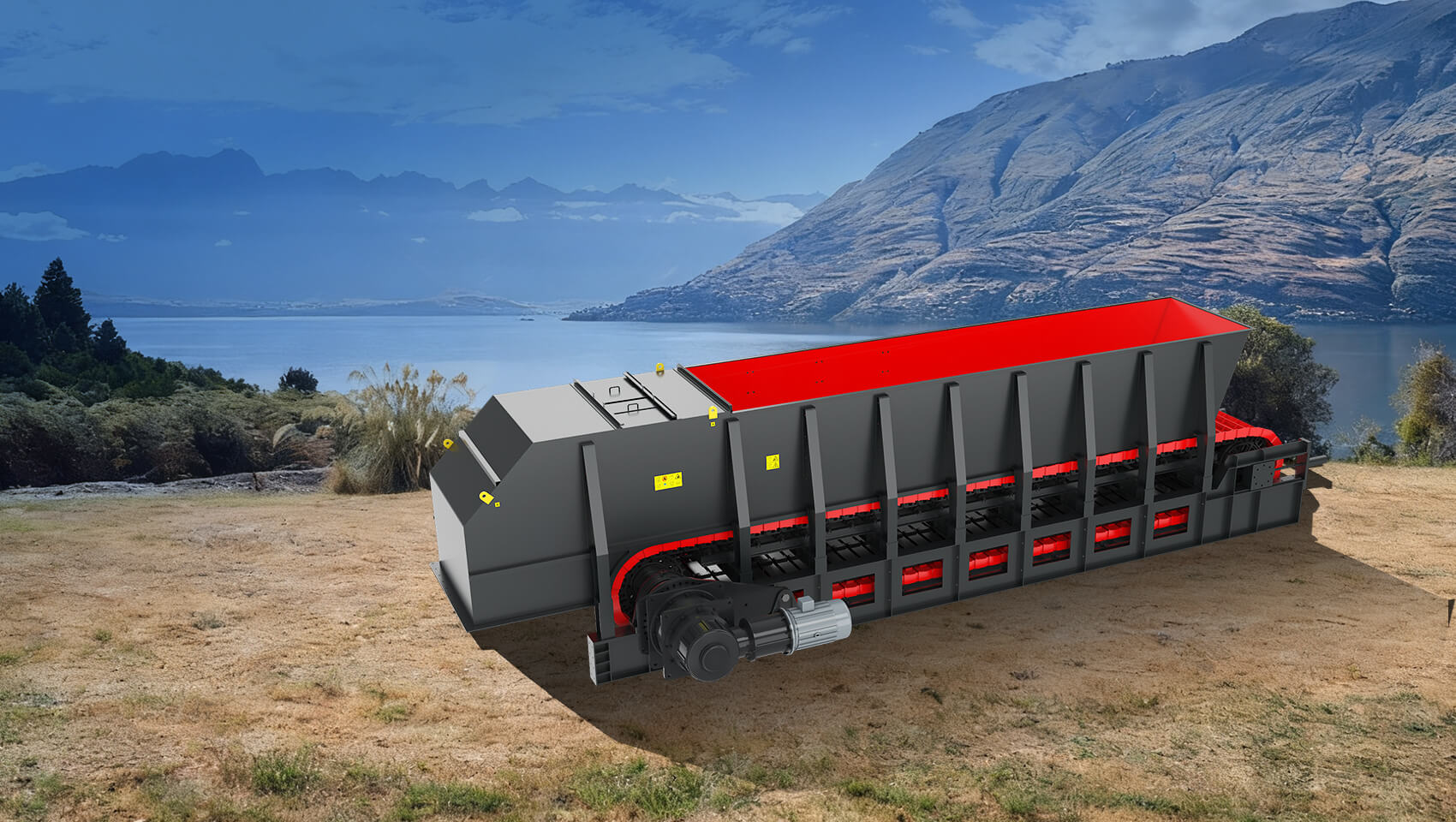

This equipment is mainly used under silos and hoppers with a certain silo pressure to continuously and evenly distribute or transfer various large-particle materials to bulk materials. It is not only suitable for processing coarse-grained materials, but also has greater adaptability to the changes in particle size and temperature of fine-grained materials.
High-quality products
are our core competitiveness
It adopts tank chain transmission,which has high strength and sufficient tension, small error, long service life, and solid and stable structure;
According to the needs of feeding, it can be installed horizontally or tilted. and the installation of the feed bin can also be reduced. Installation angle ∠a=0~25°;
The trough plate adopts are overlap, no bulk material leakage phenomenon, and has greater bearing capacity.
| Model | Maximum Feed Size(mm) | Speed(m/s) | Maximum Processing Capacity(t/h) | Moter Power(kW) | Dimensions(LxW×H)(mm) |
| BWZ 1250×6 | 650 | 0.014-0.12 | 150 | 15 | 8715×2782×2650 |
| BWZ 1400×8 | 750 | 0.014-0.12 | 250 | 22 | 10658×3067×2750 |
| BWZ 1600×9 | 900 | 0.014-0.12 | 350 | 30 | 11740×3272×2780 |
| BWZ 1800×9 | 1050 | 0.014-0.12 | 500 | 37 | 12320×3712×2900 |
| BWZ 2000×10 | 1100 | 0.014-0.12 | 680 | 45 | 13234×3912×3050 |
| BWZ 2200×10 | 1250 | 0.014-0.14 | 800 | 55 | 13570×4590×3100 |
| BWZ 2400×12 | 1600 | 0.014-0.14 | 1000 | 2×55 | 15720×4885×3230 |
| Model | Maximum Feed Size(mm) |
Maximum Processing Capacity(t/h) |
Moter Power (kW) |
| BWZ 1250×6 | 650 | 150 | 15 |
| BWZ 1400×8 | 750 | 250 | 22 |
| BWZ 1600×9 | 900 | 350 | 30 |
| BWZ 1800×9 | 1050 | 500 | 37 |
| BWZ 2000×10 | 1100 | 680 | 45 |
| BWZ 2200×10 | 1250 | 800 | 55 |
| BWZ 2400×12 | 1600 | 1000 | 2×55 |
